No Drilling. No Mess. No Visible Wires: HFCL’s Invisible Cable Fixes It All

Overview

Bulky conduits, drilling, and trunking make traditional fiber installation costly, time-consuming, and damaging to interiors. These methods disrupt aesthetics, increase rework, and are unsuitable for rentals or heritage spaces. To solve this, HFCL developed the Invisible Cable in 0.9mm and 1.2mm variants  a discreet, fire-safe, and bend-insensitive fiber solution. With adhesive-based, pre-connectorised design, it enables fast, damage-free, and cost-effective fiber deployment while preserving interiors.

Highlights

• Ultra-thin 0.9mm & 1.2mm invisible fiber.
• Pre-connectorised design enables quick, error-free installation.
• Adhesive-based setup with low-melting point for fast mounting.
• FR-PVC variant ensures fire safety compliance.
• Bend-insensitive G.657A2 delivers consistent performance.
• Lower rollout and space-saving packaging efficiency.

Challenges Faced

1. Aesthetic Compatibility
   Fiber optic cables in residential and commercial environments were intrusive, requiring conduits or false panels that disrupted interiors.
2. Safety Concerns in Interiors
   Standard cables posed fire and safety risks in closed environments, making it difficult to balance invisibility and compliance.
3. Costly & Invasive Installation
   Drilling, wall modifications, and conduits increased project costs, timelines, and made deployment impractical for rentals, temporary setups, and heritage structures.
4. Slow Installation Due to High-Temperature Adhesive:
   The 1.2mm cable’s initial 80°C adhesive caused slow melting, making installation time-consuming and less efficient for large or temperature-sensitive projects.

HFCL’s Approach to These Challenges

1. Invisible & Ultra-Thin Design

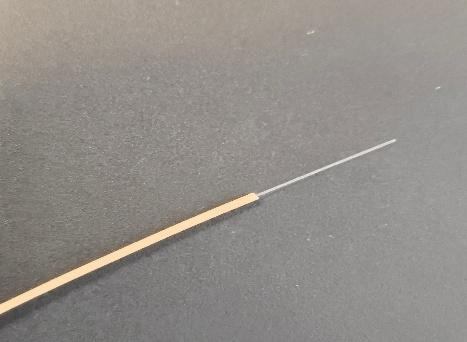

HFCL engineered 0.9mm and 1.2mm invisible fiber cables with transparent Nylon and PVC materials that blend seamlessly with wall colors and textures, ensuring a clean, minimalistic look without visual clutter.

‍

‍

2. Fire-Safe Material Innovation

To address fire safety, HFCL developed a Flame-Retardant (FR) PVC variant, enhanced with fire-resistant additives. This delivers a creamy-white finish, balancing both safety compliance and aesthetic appeal.

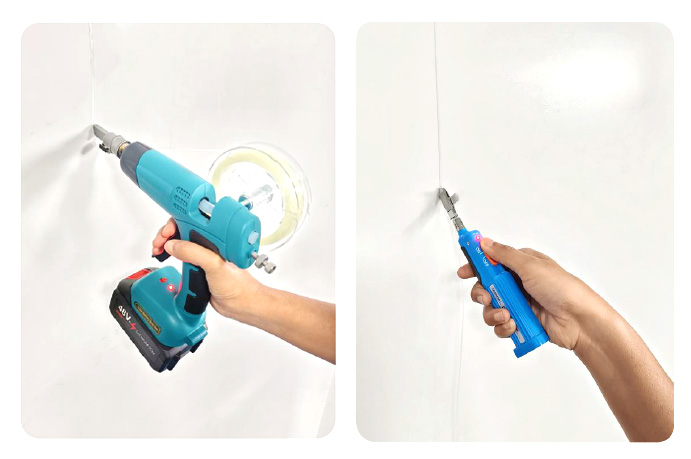

3. Non-Destructive Installation

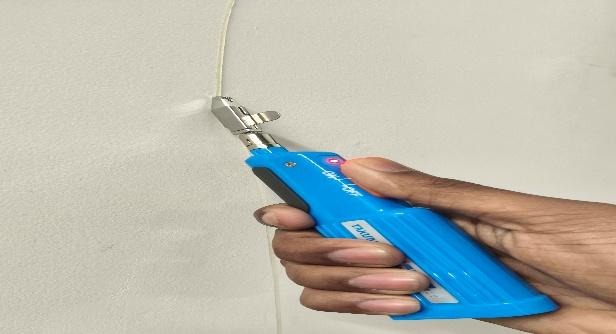

0.9mm Variant: Mounted using a hot melt glue gun, adapting to architectural contours without wall damage.

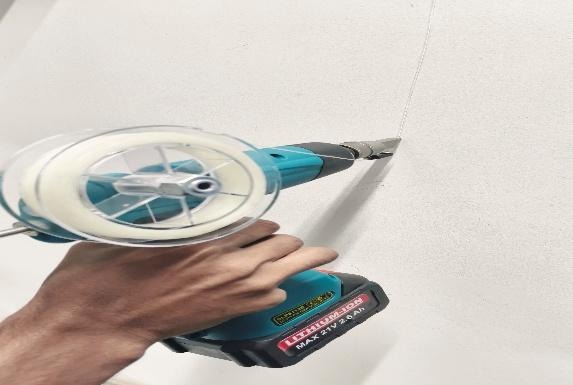

1.2mm Variant: Pre-coated with heat-activated adhesive, installed with a controlled heating tool for secure, uniform bonding.

Success Metrics

• Seamless Aesthetics: Invisible creamy-white finish ensures harmony with stylish modern interiors.
• Reliable Performance: Bend-tested up to 10mm diameter, maintaining attenuation for dependable connectivity.
• Deployment & Cost Savings: Pre-connectorised design speeds installation, reduces errors, and avoids costly wall repairs.
• Safety & Compliance: Flame-retardant PVC variant fulfils IEC 60332-1-2 indoor fire safety.
• Sustainability: Adhesive mounting reduces material use, minimises construction debris, and supports eco-friendly rollouts.
• Packaging Efficiency: Optimised packing accommodates 88.1% more cable length (0.9mm) and 79% more cable length (1.2mm).

Applications

• Smart Homes: Invisible cabling for Wi-Fi backhaul, IPTV, and IoT devices
• Offices & Enterprises: Discreet fiber to workstations, conference rooms, and AV systems
• Museums & Galleries: Non-intrusive AV and security fiber installations that preserve interiors
• Hospitality & Hotels: Guest Wi-Fi, IPTV, and back-end networks without wall damage
• Heritage & Rental Spaces: Quick, removable, and non-destructive fiber setup for sensitive or temporary locations

Conclusion

HFCL’s Invisible Cable is a game-changing fiber optic solution that redefines connectivity for modern interiors. By combining aesthetics, bend-insensitive fiber performance, fire safety, and fast, damage-free installation, it enables high-speed digital connectivity without disrupting interior design. Whether for smart homes, offices, hotels, or heritage spaces, the Invisible Cable provides a future-ready, scalable, and sustainable fiber optic deployment solution delivering superior performance while protecting the look and integrity of every space.
